Pneumatic Sorting Clamp ASZ-P
Order-Number: 57400023

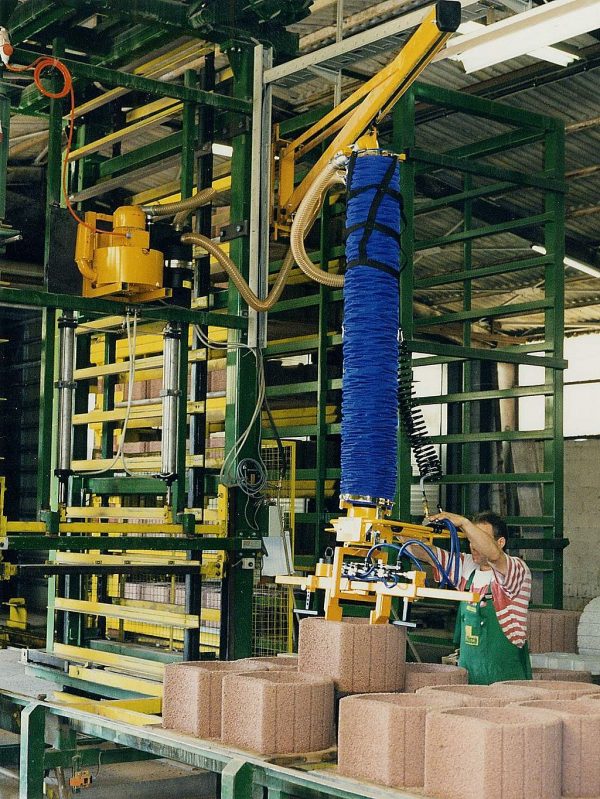

This universal outsorting clamp offers a versatile use due to large adjustable opening width. Optimum for slabs, kerb stones and wall-rings for plants, etc.

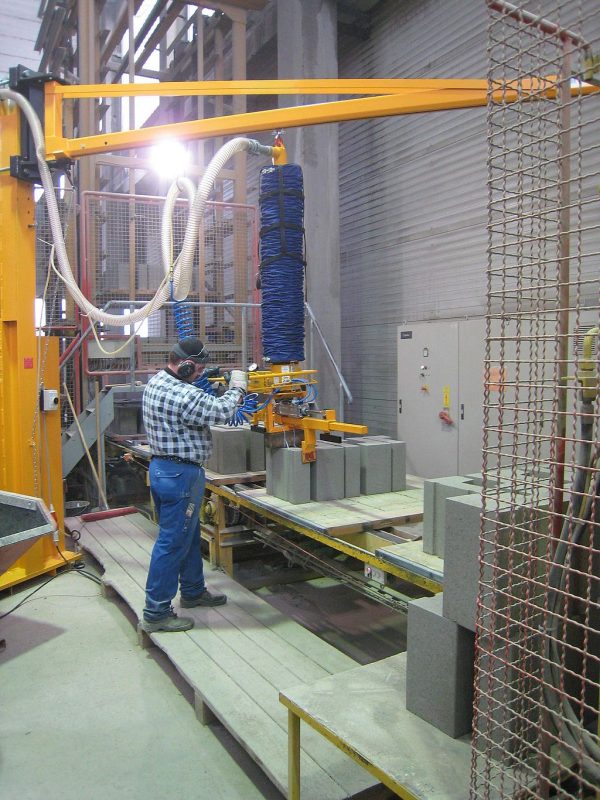

Suitable for attachment to a vacuum lifting unit or to a overhead or jib crane.
Cylinder lifting 150 mm: the further range of opening width is mechanically adjustable.
Standard Specifications:
Crane eye for attaching to crane hook or alternatively with flange plate to attach to a vacuum lifting unit.
Pneumatic closing cylinder and additional manual adjustment to achieve a larger opening width.
Hand-guided valve with closing cylinder.
Product description
ASZ-P [57400023]:
- Opening Width gripping inside mm (in): 270 – 600 (10 ¾ – 23 ½”)
- Opening Width gripping outside mm (in): 220 – 1,050 (8 ¾ – 41”)
- Working Load Limit WLL kg (lbs): 120 (265)
- Dead Weight kg (lbs): 18 (40)
