Concrete Step Handles TSZ

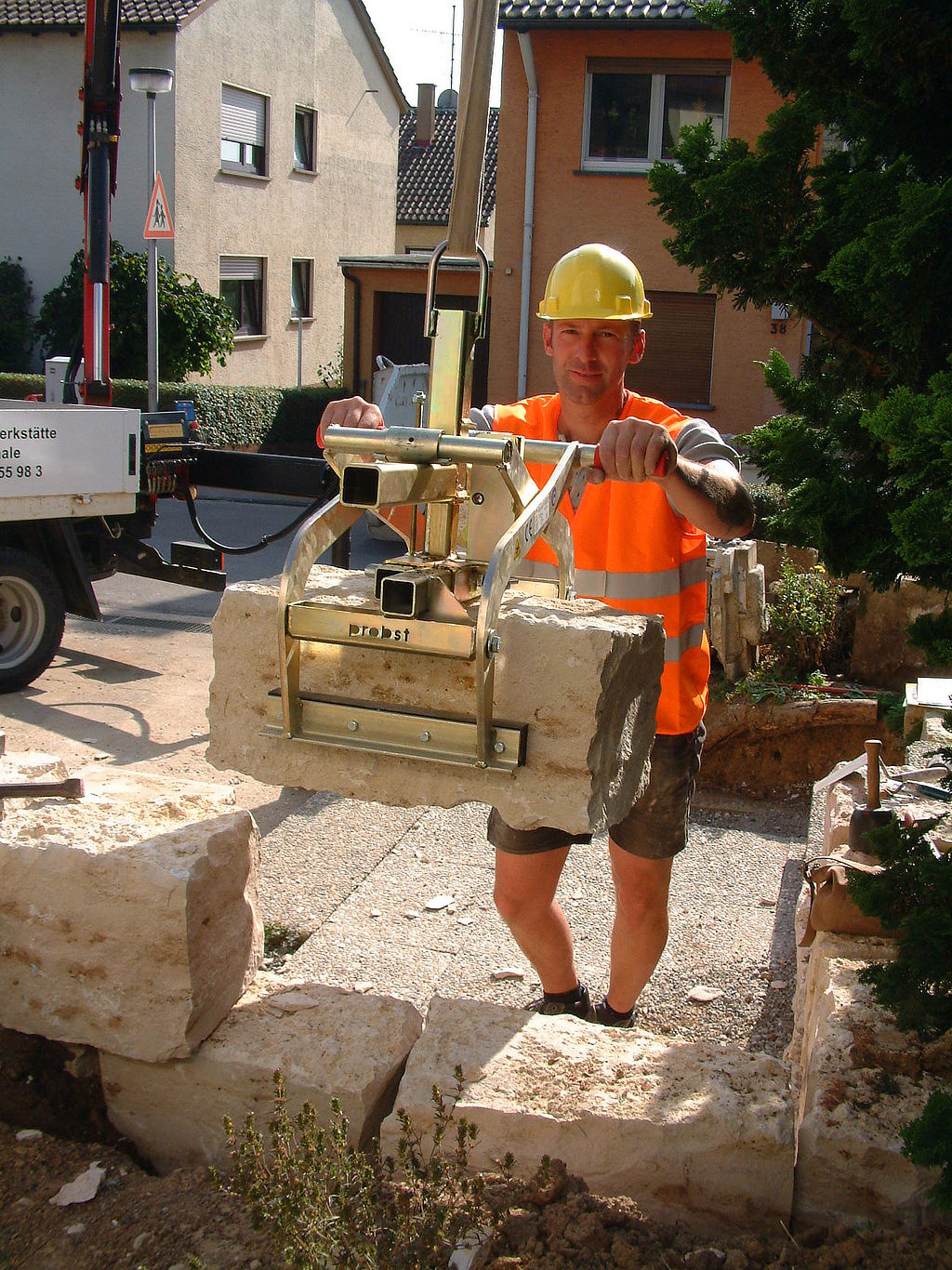

Suitable for handling steps, kerb stones, L-stones, etc. in conjunction with a lifting device.

Easily adjustable opening width by means of a spring-loaded bolt.

Available in two different configurations:

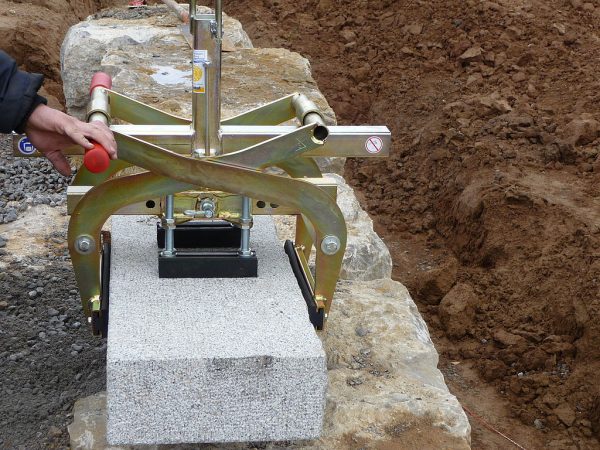

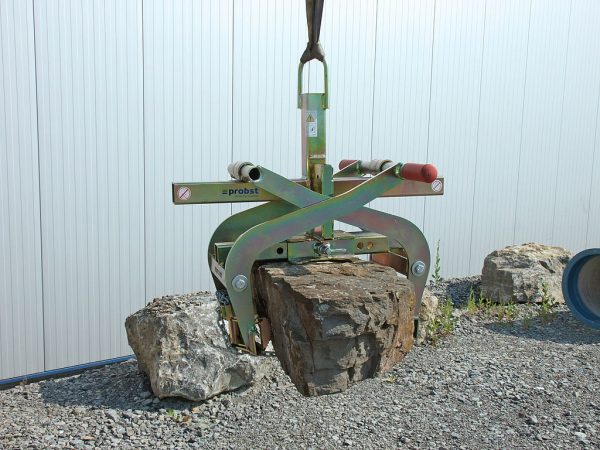

TSZ-UNI:

• Considerable inside height
• Gripping Range 50 – 600 mm
• Carrying Capacity 600 kg

Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm thus being able to grip underneath the conical form.

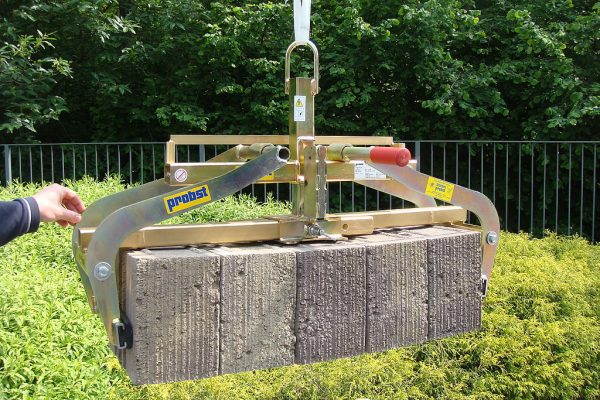

TSZ-MAXI:

• Considerable inside height
• Gripping Range 850 – 1.100 mm
• Carrying Capacity 600 kg

Standard Specifications:

• Lifting eye for attaching to crane hook.
• Automatic release for fully automatic switch-over from “full” to “empty”.
• Exchangeable profiled rubber grippers

Durable surface protection by galvanizing
