Manhole and Cone Installation Clamp SVZ-ECO

Gripping and moving manhole elements securely! The new Manhole and Cone Installation Clamp SVZ-ECO is the light-weight and budget-priced „little sister“ of the universal Manhole and Cone Installation Clamp SVZ-UNI.

The Manhole and Cone Installation Clamp SVZ-ECO simplifies the transport of manhole basers, rings and cones. The manhole elements can have a nominal width between 625 – 1.500 mm, the maximum carrying capacity of the SVZ-UNI is 2.500 kg.

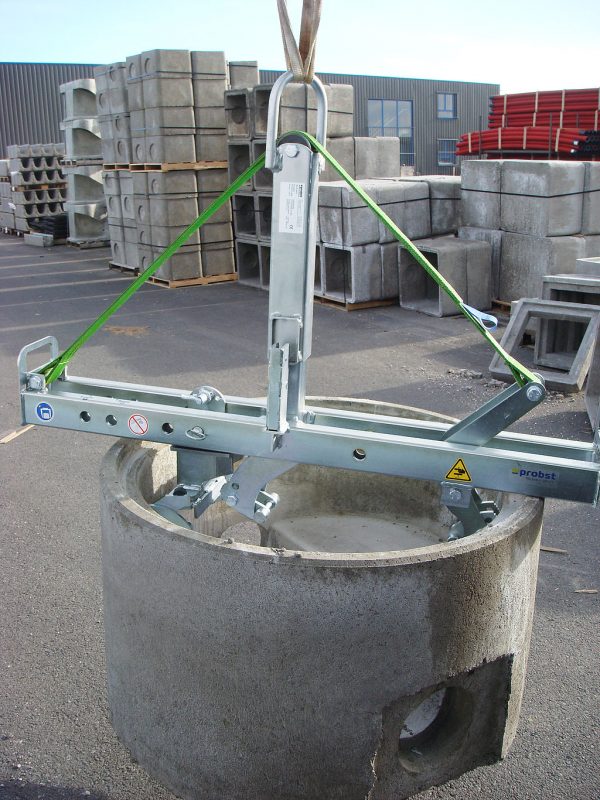

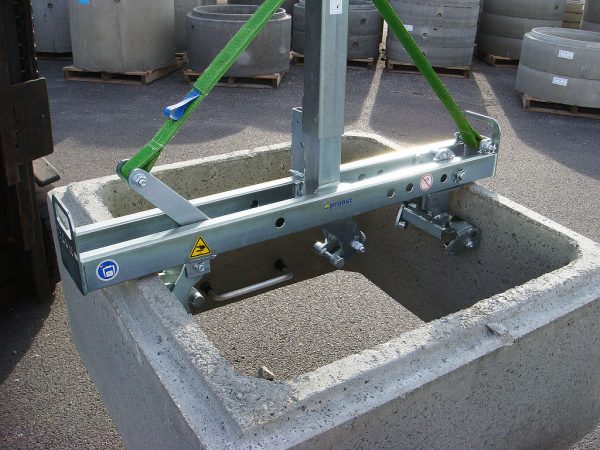

The SVZ-ECO is the right choice for sole installation of manhole basers and rings with a nominal diameter of 800 und 1000 mm (round and square) and cones (625 mm) or round well rings with a nominal diameter of 900 mm up to 1700 kg. The installation clamp can be operated solely by the excavator driver due to integrated trip mechanism for fully automatic switching between gripping and release. The self-tensioning steel claws ensure secure gripping.
